Romagnetics Midynamite
The Open Source MIDI Multi-Effects Pedal

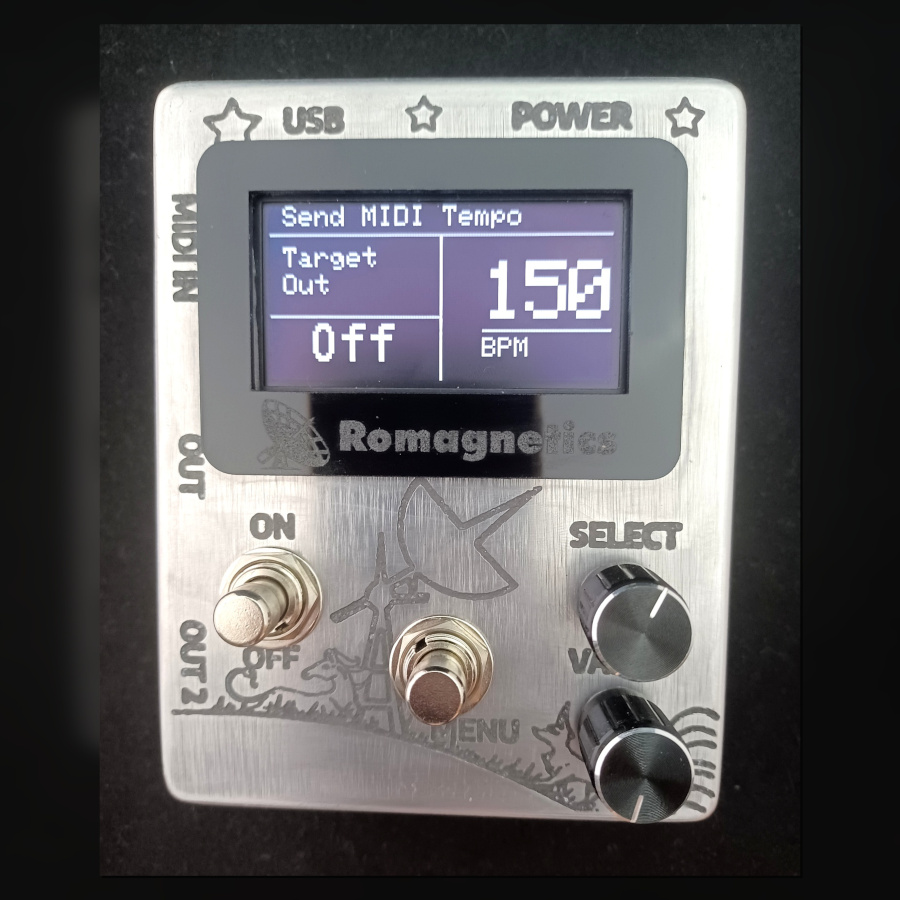

The Romagnetics Midynamite is a compact, battery-powered MIDI multi-effects pedal with three physical MIDI DIN 5-pin connectors and USB MIDI device support. It can function as a standalone pedal or as a USB MIDI interface for a computer.
All effects can be toggled independently and configured via the onboard screen and encoder.
Available to buy here: Buy the Romagnetics Midynamite
🎛 Features Overview
Menu List

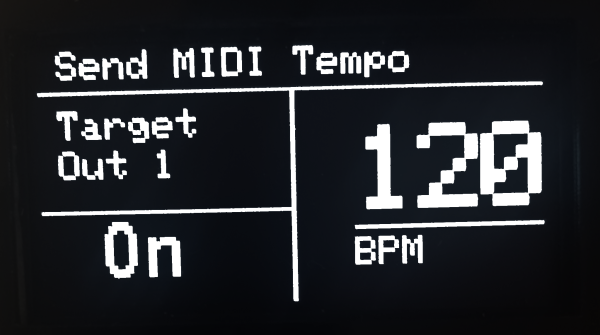

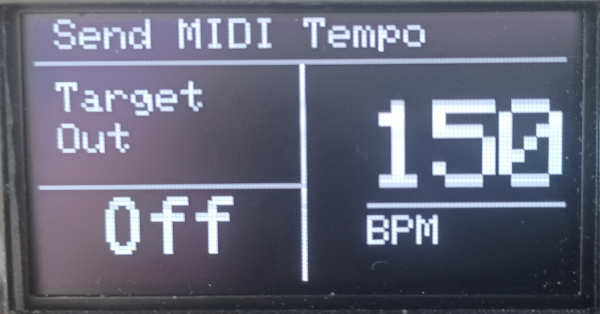

MIDI Tempo
MIDI Split
MIDI Split allows you to send MIDI notes to two different groups based on the note, the MIDI channel, or the velocity. You can sen send each group either to all the effects, to dry, or to Bus 1 or Bus 2.

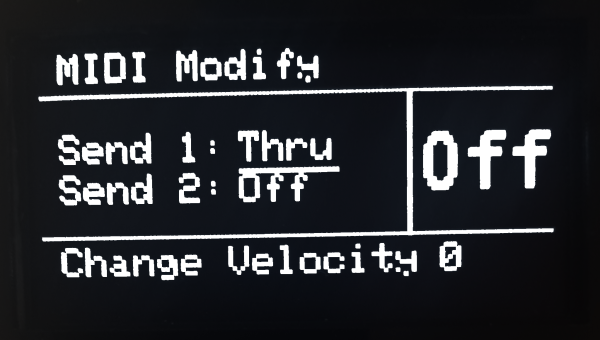

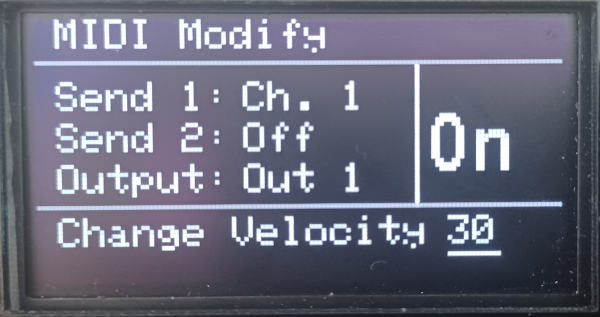

MIDI Modify
Modify the MIDI Channel and/or the velocity of your MIDI Messages.
More information about MIDI Modify.

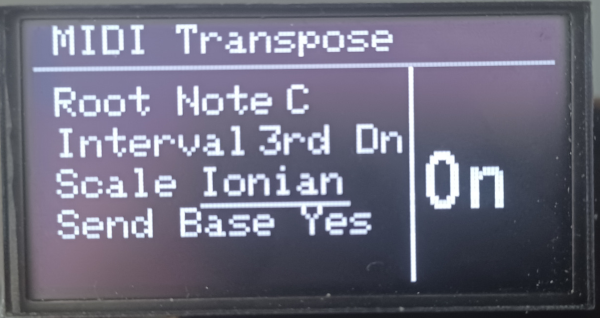

MIDI Transpose
Change the pitch of incoming notes, either with Pitch Shift or with the Harmonizer.
More information about MIDI Transpose.

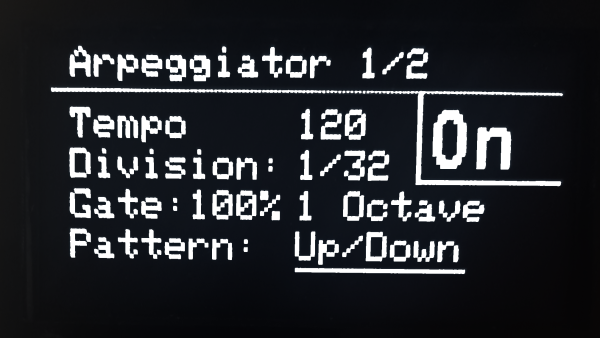

Arpeggiator
Everything you want from a modern arpeggiator, from Gate to Programmable steps and Keysync.
More information about the Arpeggiator.

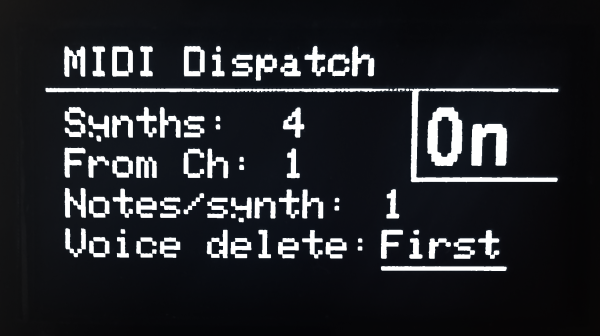

MIDI Dispatch
Do you want to dispatch your MIDI notes to several synthesizers?
More information about MIDI Dispatch.

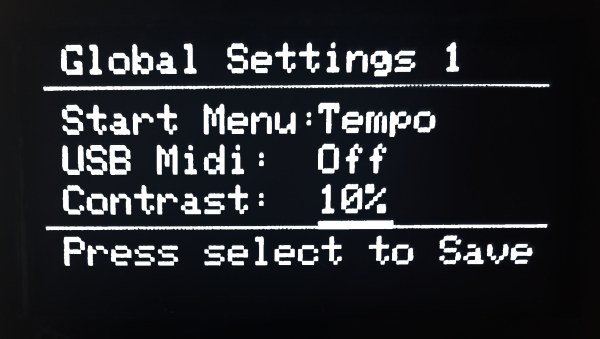

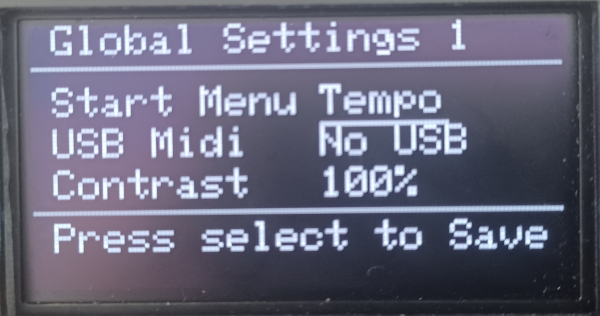

Settings
Contrast, send behaviour, MIDI masks etc… Change the behavior of the pedal with the settings.

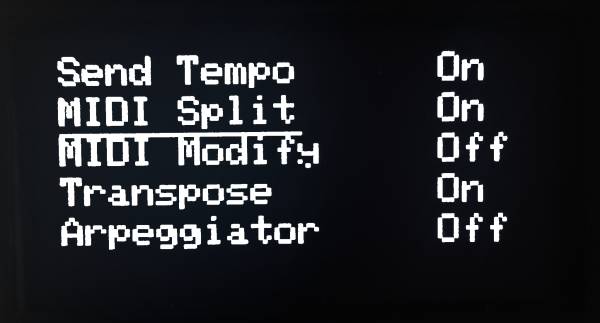

Menu Select
If you press the Menu button shortly, the pedal will go to the next menu. If you keep Menu pressed, you can select the menu directly by using the select encoder. You can turn each menu on an off from the menu select by pressing the Start / Stop button.
🆘 Panic Button
To immediately stop all MIDI output:
Press Select + Value simultaneously
This will send all notes off to all 16 MIDI channels.
